30 Progressive Training Modules Online Flight Uav Simulator Platform
Datos del producto:
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | 169 |
|
Información detallada |
|||
| Tipo de pulverizador: | Vehículo aéreo no tripulado (Uav) | Peso Total: | 28 kilos |
|---|---|---|---|
| Voltaje de entrada de la fuente de alimentación: | CA 100-220 V 50-60 Hz | Límite de movimiento: | Eje X ±25°, Eje Y ±25°, Eje Z 150 mm |
| Bloqueo de dirección de movimiento: | Bloqueable de tres ejes | Paquete de transporte: | Paquete de caja |
| Marca: | ATT | Origen: | Porcelana |
| Capacidad de producción: | 10000unidad/año | ||
| Resaltar: | online flight simulator training,progressive drone training modules,UAV simulator platform education |
||
Descripción de producto

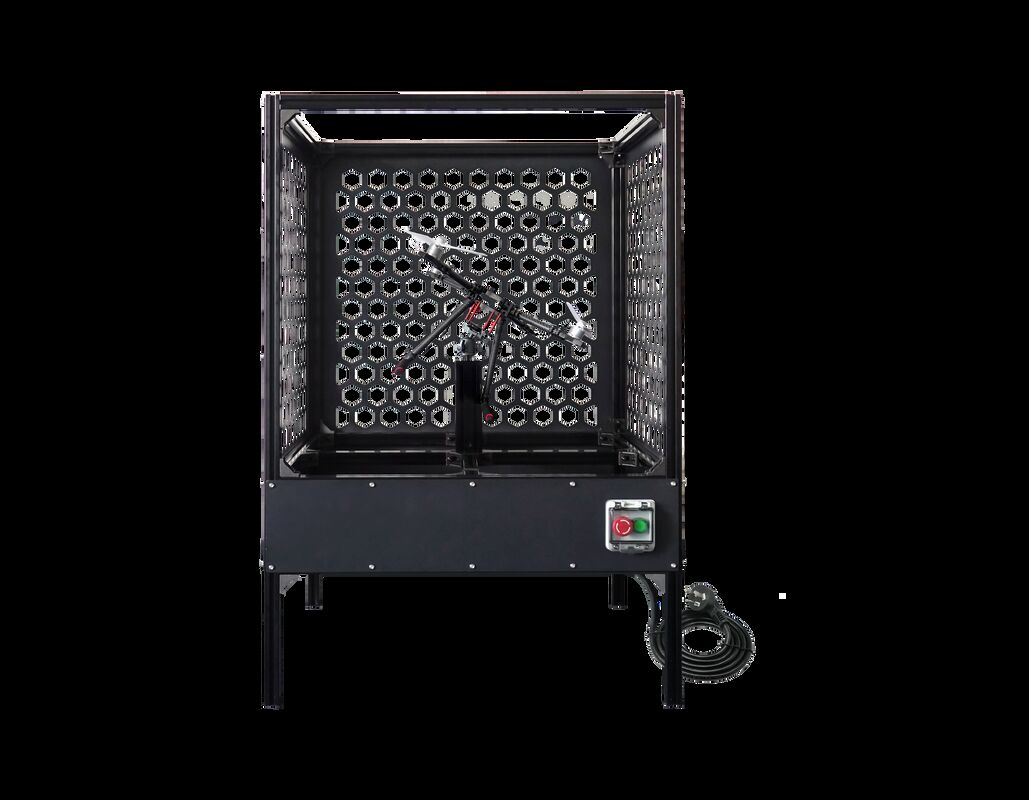

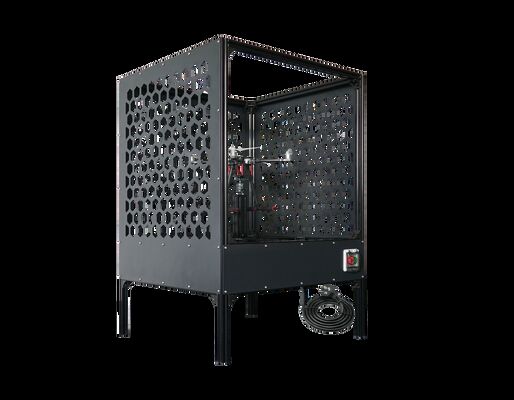

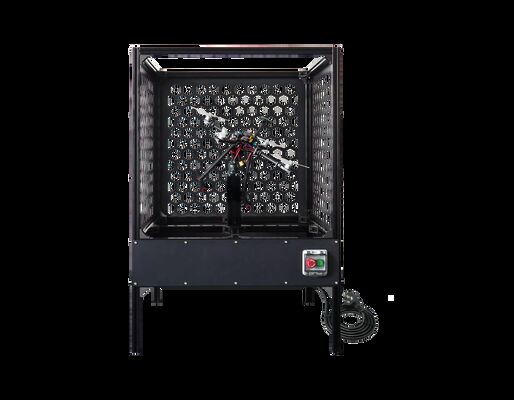

This system enables comprehensive PID debugging and flight testing for small drones. Whether you're a drone manufacturer, research institution, testing facility, or training center, the TE55 multi-degree-of-freedom drone debugging platform delivers professional and secure testing solutions.
Supply Ability: 500 sets per month
Packaging: Packed in professional aviation case
Port: Tianjin, Shanghai, Ningbo, Shenzhen
| Specification | Details |
|---|---|
| Outline dimension | 800*800*1200 mm |
| Total weight | 28Kg |
| Power supply input voltage | AC 100-220V 50-60Hz |
| Limit of motion | X-axis ±25°, Y-axis ±25°, Z-axis 150mm |
| Motion direction lock | Three-axis lockable |
| Supported device sizes | Wheelbase ≤550mm, propeller ≤12 inches, maximum height from fixed position to aircraft's highest point ≤200mm |
Accuracy: Horizontal: ±1cm + 1ppm, Vertical: ±2cm + 1ppm
Function: Ensures complete field coverage, prevents damage to neighboring crops and pollution, one base station supports multiple drones working simultaneously
- Double water pumps generate bigger pressure, max 4L/min adjustable flow rate
- Larger inlet for faster chemical filling with no leaking
- Advanced flow meter ensures precise spraying within 2% error margin
Equipped with front and back obstacle avoidance sensors, enabling automatic obstacle detection to prevent unexpected crashes and losses. The GCS displays the distance from obstacles in real-time.
Enables drone operation on undulating crop fields, making spraying work significantly easier.
Real-time video monitoring provides detailed information about drone status and crop conditions. Dual LED lights support night flight operations.
Comprehensive management solution for drones and spraying records. Supports real-time monitoring of all drone operations and collects data including sprayed area, spraying location, spraying logs, and more.
